Osprey-227h



Case Packers Designed for Agility

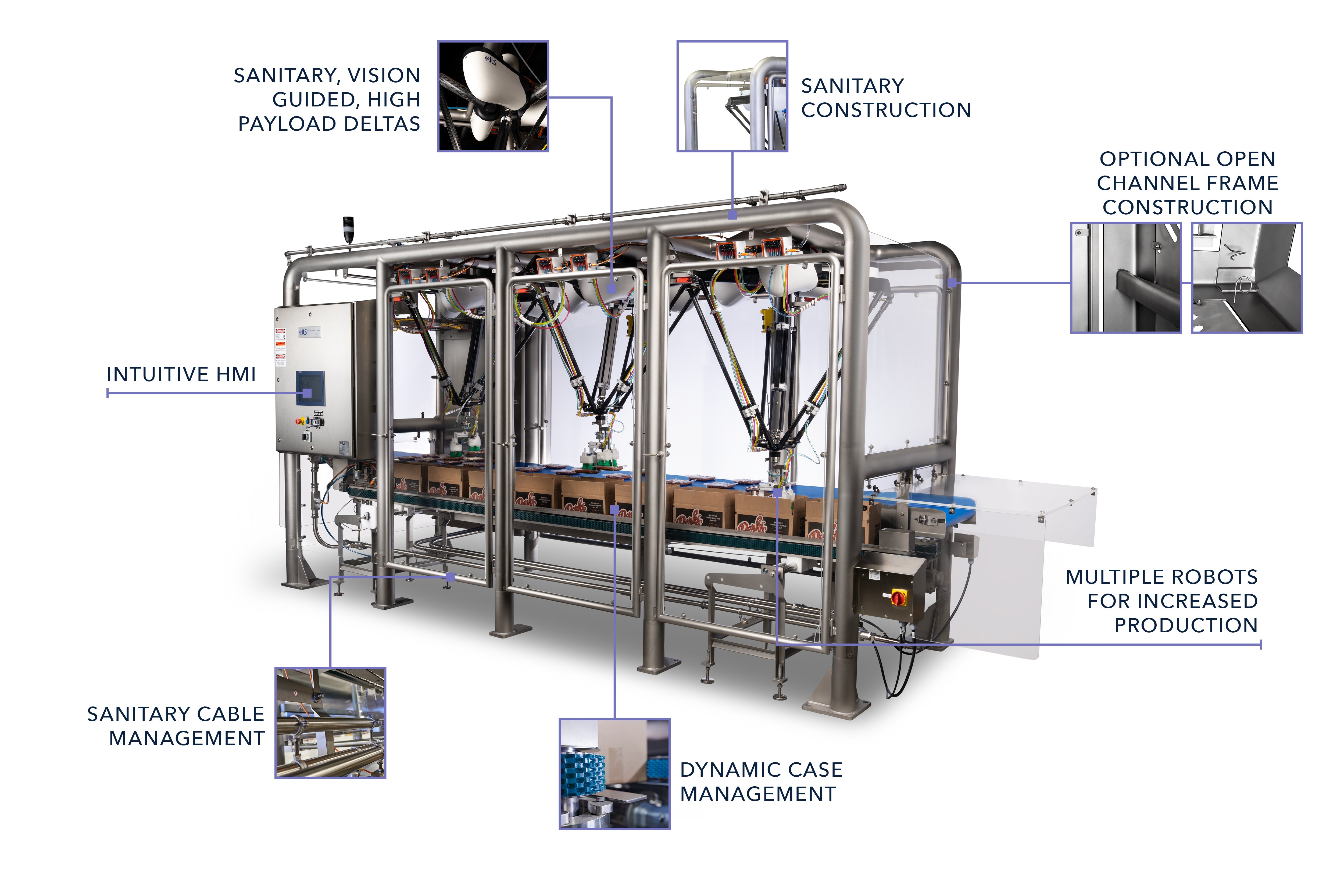

Efficient and reliable case packing is essential to the success of your operations. Osprey® robotic case packing systems are versatile by design and easily integrate into existing lines or help automate manual processes. These flexible case packers handle a variety of packaging formats, including flat or vertical pack of stand-up pouches, flat pack of foodservice bags, MAP trays, thermoformed pouches, chubs and more. With sanitary high-payload delta robots, sloped surfaces and open design, Osprey never gets tired and excels at working in harsh environments. Osprey’s optional PIVT automatic leak detection system eliminates leaky packages and reduces waste.



osprey-robotic-case-packer-callout



Robotic Case Packaging Systems For Your Specific Application


Trays
High-speed tray loading with high-payload deltas for rates up to 120 trays/min. Compact footprint. Optional friction feeder for layer sheets. Vision system to detect label placement.



Learn More


Chub Packs

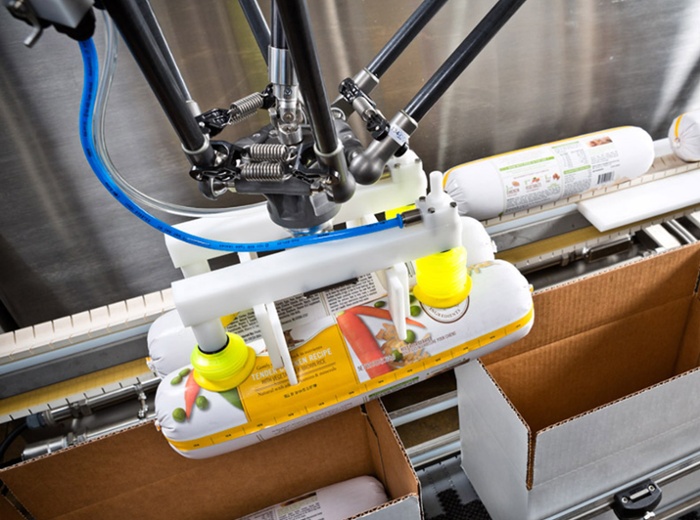

Automatic chub loading has never been easier. Load chub packs from 8 oz to 10 lbs in a matter of seconds with quick-change end-of-arm tooling.

Learn More


Thermoform Packs
Efficiently load thermoform packs or VSPs into cases. Our proprietary PIVT® automatic leak detection system is available for packages with a brine.




Bags/Pouches
Load flexible bags or stand-up packages into cases efficiently. High-payload deltas are available for large bags or pouches. Single and dual-head configurations available.

Sanitary, Vacuum on Board Technology

JLS developed our Vacuum On Board (VOB) technology to facilitate the use of high-speed vacuum generators in primary food packing equipment and applications. Finding commercial sources with inappropriate performance and material characteristics, we developed our own single stage venturis. VOB has no moving parts and is virtually clog-free by nature.

The technology integrates well into most end-of-arm tools that JLS builds for primary and secondary food packing equipment applications. Vacuum turn on/off time is greatly reduced and problematic vacuum hosing and tubing are eliminated. Sanitation is simple, as is tool changeover, and there are no clogged airlines to contend with or clean.

Our VOB 2.0 was developed in conjunction with Penn State University, allowing us to facilitate new design parameters via a computer model versus trial and error in previous design iterations. More importantly, our air consumption has been dramatically lowered with more than a 50% reduction in actual field installations.

Osprey-pet food-VOBTech_automatic-chub-loading-system-2-1
DW_Osprey_700px-1

PIVT Leak Detection System

PIVT package integrity validation technology has been developed by JLS to address a growing need by our customers to validate the integrity of a package prior to food packing. Initially, the focus was on hot dog and sausage packages, but PIVT is now being targeted to several other package formats, including bacon, sliced meats, cheese and other forms of vacuum-formed packages.
